Fluid fertilizer and fertigation system

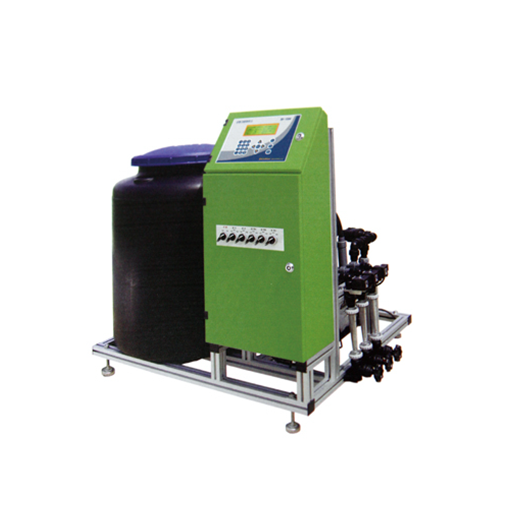

High-quality fluid fertilizer system
ESN-2001
ESN-2001
Product Description
Irrigation Pump : 3hp (max irrigation capability : 16,000 LPH)
Fluid Fertilizer Supply : Venturi type (30-300 LPH)
Control Method : Mycom (auto-controlled by custom settings)
Measurements : Width 110cm × Length 105cm × Height 120cm
Gross Weight : 130kg
Working Power : 3-phase 4-wire AC380V / 60Hz
Control Method : Time control, light quantity control, exterior control
Irrigation Type : Flow rate irrigation, time irrigation
Fluid Fertilizer : Basic A1 + B1 + C (optionally grow 2 other crops)

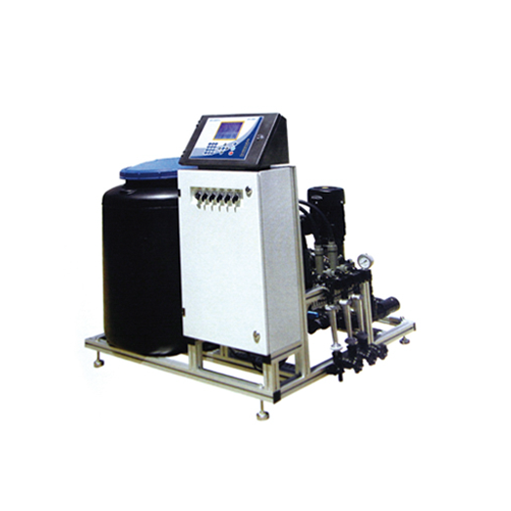

Economic fluid fertilizer system
ESN-1700A
ESN-1700A
Product Description
Irrigation Pump : 2hp (max irrigation capability : 22,000 LPH)
Fluid Fertilizer Supply : Venturi type (30-300 LPH)
Control Method : Mycom (auto-controlled by custom settings)
Measurements : Width 107cm × Length 95cm × Height 108cm
Gross Weight : 110kg
Working Power : 3-phase 4-wire AC380V / Single-phase AC220V (Optional)
Control Method : Time control, interval control, light quantity control
Irrigation Type : Flow rate irrigation, time irrigation
Fluid Fertilizer : A, B, C (3 tanks)
