Fluid fertilizer and fertigation system
EC/PH controlled irrigation system

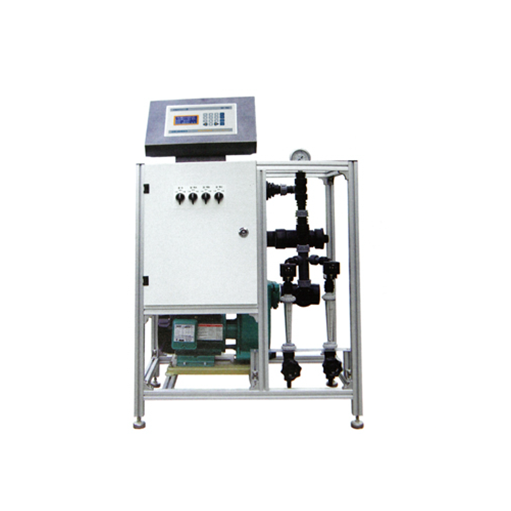

ESN-1004E / ESN-1004P
ESN-1004E / ESN-1004P
Product Description
Irrigation Pump : 2hp (max irrigation capability : 22,000 LPH)
Fluid Fertilizer Supply : Venturi type (30-300 LPH) PH option
Control Method : Mycom (auto-controlled by custom settings)
Measurements : Width 107cm × Length 92cm × Height 108cm
Gross Weight : 110kg
Working Power : 3-phase 4-wire AC380V / Single-phase AC220V (Optional)
Control Method : Time control, interval control, exterior control
Irrigation Type : Time irrigation
Fluid Fertilizer : Basic EC : A + B / Option PH : C
EC controlled irrigation system
ESN-700
ESN-700
Product Description
Irrigation Pump : 1hp (max irrigation capability : 18,000 LPH)
Fluid Fertilizer Supply : Venturi type (30-300 LPH) EC option
Control Method : Mycom (auto-controlled by custom settings)
Measurements : Width 70cm × Length 53cm × Height 106cm
Gross Weight : 60Kg
Working Power : Single-phase AC220V
Control Method : Time control, interval control, exterior control, temperature control
Irrigation Type : Time irrigation
Fluid Fertilizer : Basic liquid fertilizer / Option : EC controlled (A + B)
